Architectural Aluminum
Visionaire™ Patio Openings
Two ways to welcome the view
The sliding system runs panels along the track for a clean sightline when closed. The folding system stacks them aside to clear nearly the whole opening.

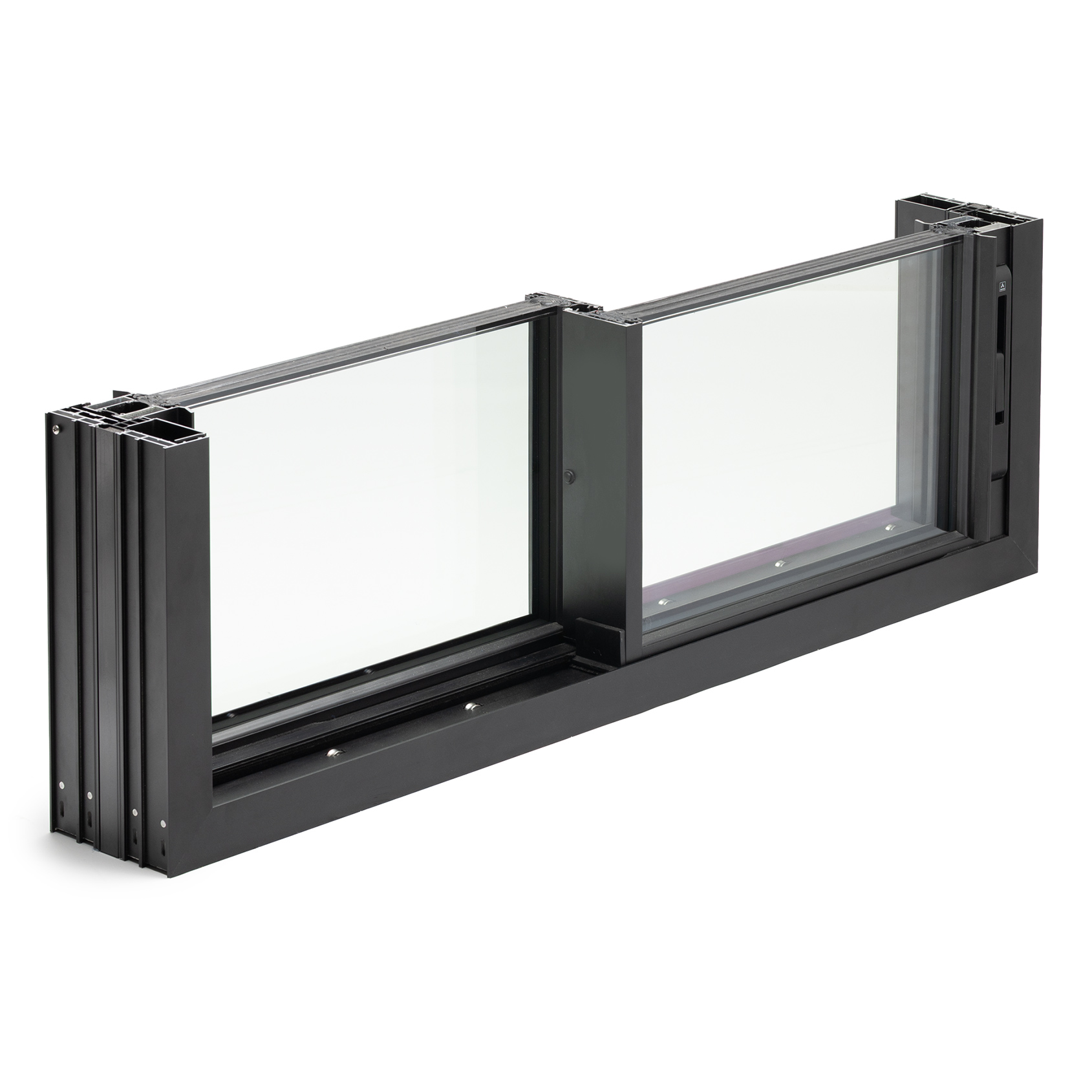

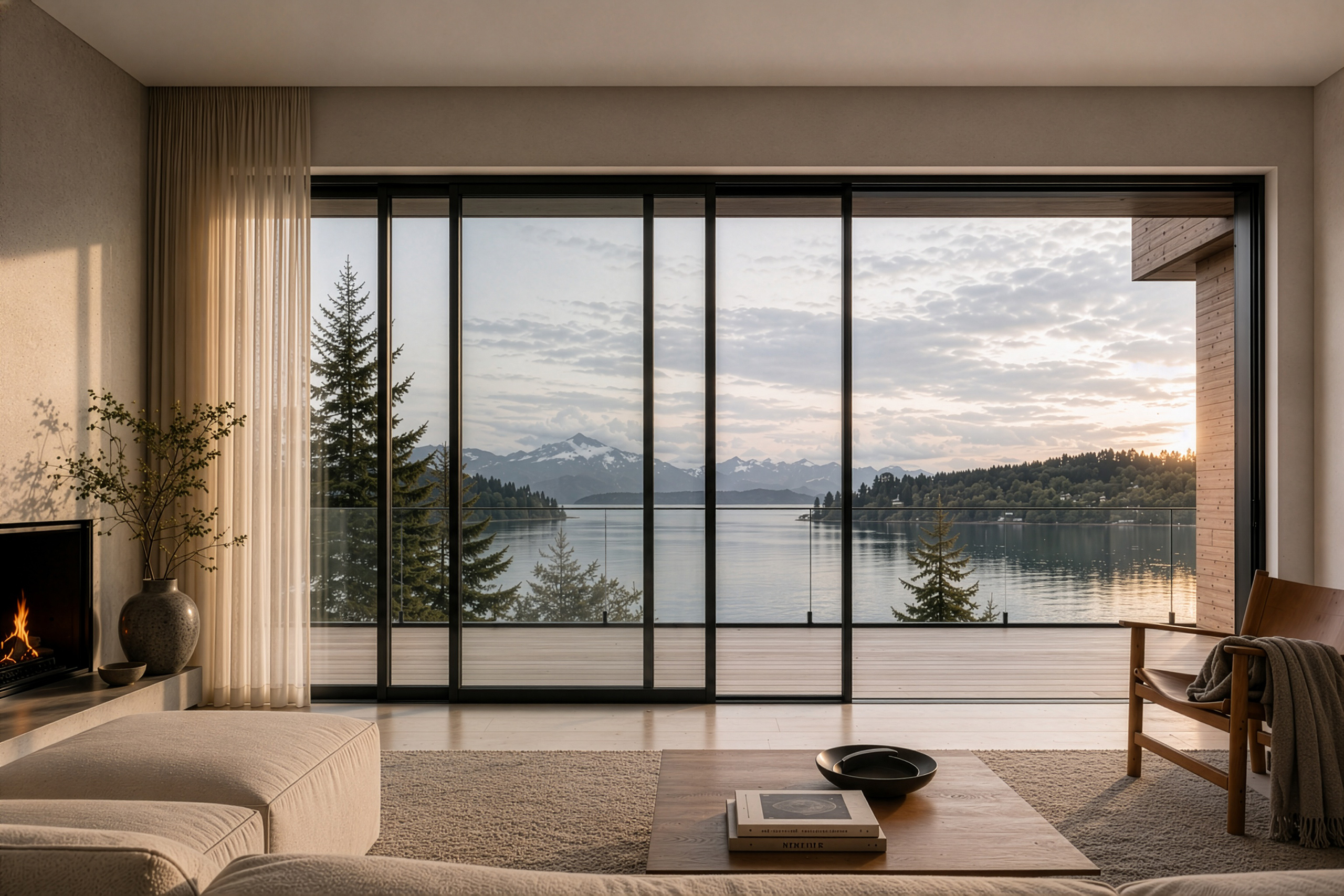

Sliding Patio Openings

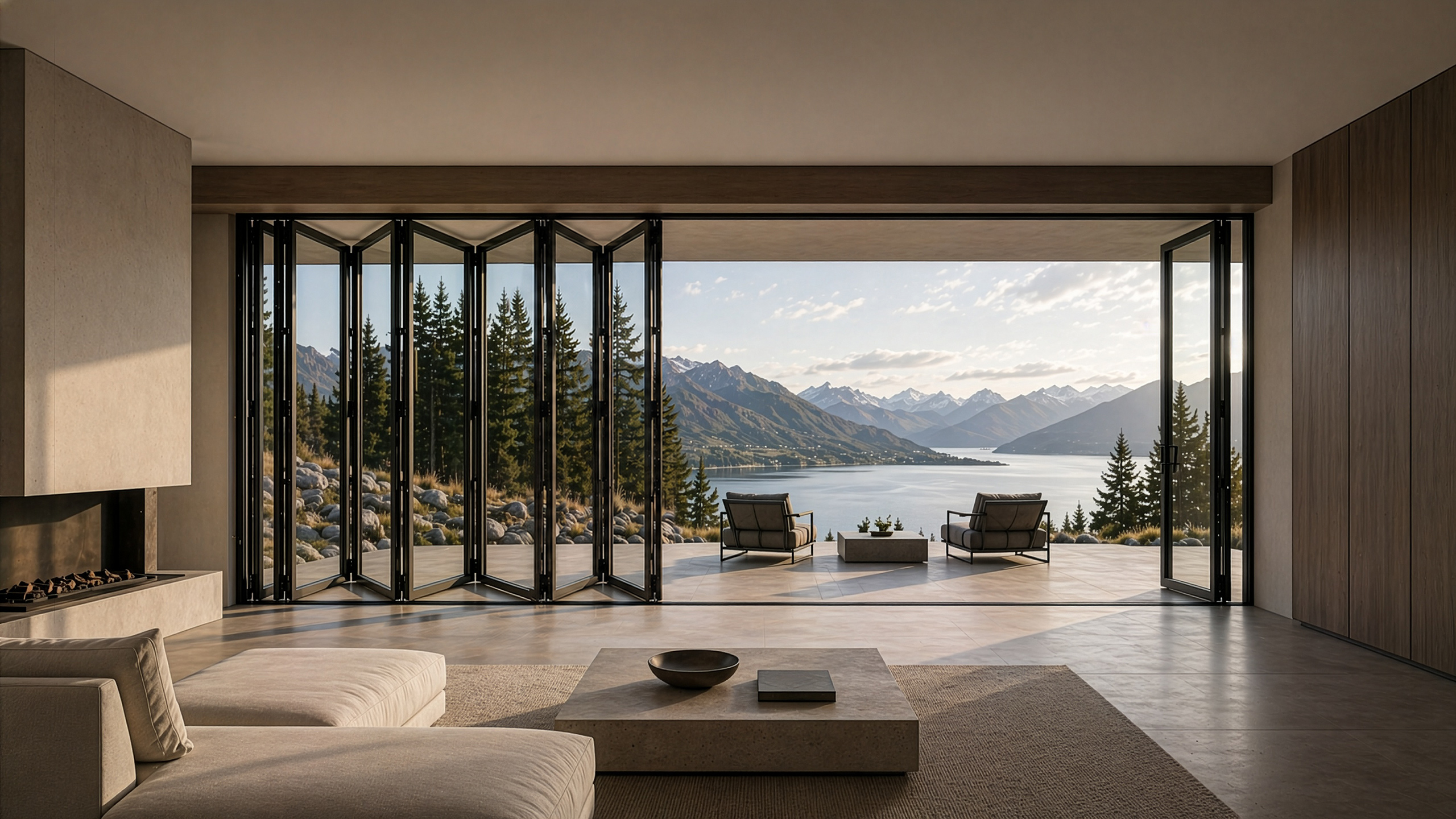

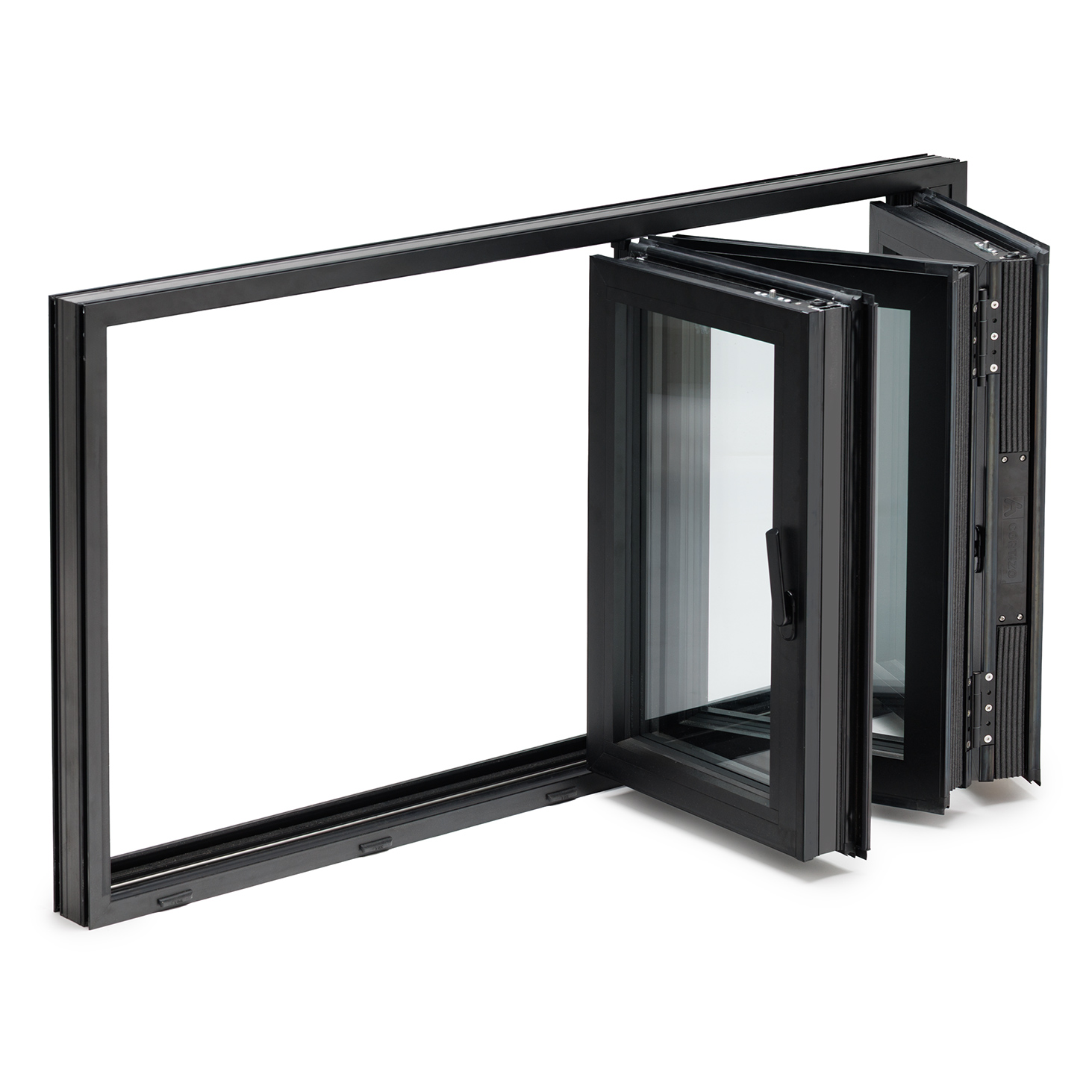

Bi-fold Patio Openings
Benefits at a Glance
Large-format
Tall, wide panels across the full span.
Sealed at scale
Locks engage around the perimeter to draw the panels tight when closed.
Consistent comfort
Even temperatures, season to season.
Permit-ready
Certified and labelled at large sizes, so every opening passes inspection.
Features
- The largest NAFS-compliant sliding openings available, with an interlock so slim the view appears frameless.
- Panels up to 20% wider and taller than standard lift and slide systems, across configurations of up to eight mobile sashes.
- Slim profiles, concealed hardware and a near-invisible interlock create a sliding opening that feels less like a door and more like a decision to remove the wall entirely.
Our aluminum patio opening systems provide a range of benefits and features that allow you to make the most of your space, including:
- Available in 2, 3, and 4-track configurations
- Multislide and biparting options available
- Ability to configure all panels as mobile for increased opening flexibility
- Expansive openings that welcome indoor and outdoor living
- Large glass panels for unobstructed views and natural light
- Durable aluminum construction engineered for Canadian climates
Our aluminum bi-fold patio openings provide a range of benefits and features that allow you to make the most out of your space, such as:
- 7 fully stackable panels
- Expansive openings
Specifications
Bi-fold
Transmittance
Bi-fold Doors as low as 1.19 (W/M²k)
Finishes
Colour Powder Coating (RAL)
Anodized Finishes
Dual Finishes Available
Categories Achieved at Test Lab
PG35; 330 Pa Water; A2 Air Rating
Tested Panel Size: 36″ x 96″
Up to 14 x panels (max 7 panels in each direction); 60 different opening possibilities.
Sliding
Transmittance
Project Specific Modelling
2 Track (Single Direction)
2 Track (Bi-parting)
3 Track
4 Track
Glazing Capacity
Triple Glazing – 54mm OA
Categories Achieved at Test Lab
PG40; 290 Pa Water; A2 Air Rating
PG30; 290 Pa Water; A2 Air Rating
PG25; 180 Pa Water; A2 Air Rating
PG20; 220 Pa Water; A2 Air Rating
Finishes
Colour Powder Coating (RAL)
Anodized Finishes
Dual Finishes Available
Standard Hardware Colours
Black
Silver
Colour with Confidence
Match every window and door to your vision with Westeck’s extensive standard colour palette, custom RAL specifications, or custom colour matching. Whether you’re looking for a timeless neutral, a bold architectural statement, or a colour unique to your project, we can match virtually any colour to bring your vision to life.
Westeck utilizes E-Coat Colourwise Performance Vinyl, an industry-leading water-based coating and staining technology designed to deliver exceptional durability and long-lasting beauty. Backed by a 15-year colour warranty on vinyl products, it helps maintain a vibrant, consistent finish for years to come. Heat-reflective pigments reduce heat absorption, even in darker colours, helping to enhance long-term performance.
This finish complies with FGIA/AAMA 615 and 625 performance standards and meets EPA safety requirements. It is non-toxic and free from lead, isocyanates, and NMP. At Westeck Windows & Doors, we use E-Coat Colourwise Performance Vinyl Diamond Coat to provide a high-performance, environmentally responsible finish.
Standard Colours
Choose from Westeck’s carefully curated selection of standard colours or create a completely custom look with colour matching and RAL specifications. Our team can match virtually any colour to complement your home’s architecture, design style, or project requirements.
Customize Your Colour
At Westeck, we take pride in delivering colours that closely match your expectations. Our digital swatches are calibrated using advanced spectrometry technology to provide accurate colour representation and consistency across our product offering.
Wood stain finishes are available upon request.
Glass
Our window and sliding systems can be optimized for energy efficiency by choosing a combination of our glass and coating options.
Low-E glass
Low-E glass maximizes natural daylight while delivering excellent thermal performance. Its neutral appearance allows for high visible light transmission, creating bright, comfortable living spaces without compromising energy efficiency.
Ideal for projects that prioritize clear views, natural light, and year-round comfort.
Solar control glass
Solar Control Glass is designed to help manage heat gain and improve indoor comfort throughout the year. By reducing the amount of solar energy entering the home, it helps minimize overheating during warmer months while maintaining excellent insulating performance during colder seasons.
This advanced glazing option is ideal for large expanses of glass, south- and west-facing elevations, and projects where maximizing comfort and energy efficiency is a priority.
Laminated safety glass
Laminated Safety Glass consists of two or more panes of glass permanently bonded together with a durable interlayer. This construction creates a stronger, safer glazing solution that continues to act as a protective barrier even if the glass is broken.
When breakage occurs, the interlayer helps hold the glass fragments together, reducing the risk of injury from shattered glass and enhancing security. Laminated glass can also improve sound control by reducing outside noise transmission and helps block up to 99% of harmful UV rays, helping protect interior furnishings from fading.
Laminated Safety Glass is commonly used in applications where enhanced safety, security, and acoustic performance are desired.
Decorative glass
Decorative Glass offers the perfect balance of privacy, natural light, and design flexibility. Available in a wide variety of patterns, textures, and styles, decorative glass can enhance the character of your home while maintaining privacy in entryways, bathrooms, and other living spaces.
Options range from subtle textured patterns to intricate decorative and leaded glass designs, allowing you to create a look that complements your home’s architecture and personal style.
Whether you’re seeking increased privacy, enhanced curb appeal, or a distinctive design feature, Decorative Glass provides a beautiful and functional solution.
